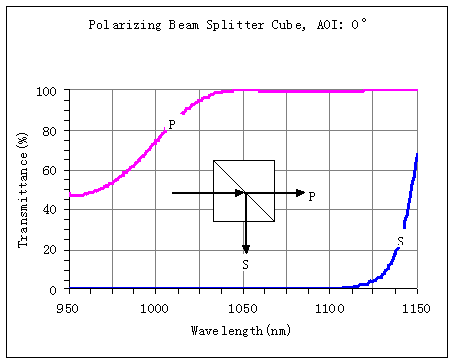

| | | 棱镜>>>偏振分光棱镜 |
|
详细说明
| 基底 | UV grade fused silica, BK7 | 表面面型 | <λ/10 @ 633nm | 表面质量 | 40-20 | 倒角 | 0.25mm at 45° typical | 镀膜工艺 | Electron beam evaporation, dielectric multilayers | 通光口径 | > Central 85% of diameter | 入射角 | 0°±2° | 偏振透光率 | Tp>98%; Ts<0.2% | 消光系数 | Tp/Ts>500:1 | AR 镀膜 | R<0.25%, Each Exterior Surface | 型号 | 直径(mm) | 波长(nm) | PBS-C-S-01 | 12.7×12.7×12.7
15×15×15
20×20×20
25.4×25.4×25.4
30×30×30 | 488 | PBS-C-S-02 | 532 | PBS-C-S-03 | 633 | PBS-C-S-04 | 780 | PBS-C-S-05 | 830 | PBS-C-S-06 | 852 | PBS-C-S-07 | 1064 | PBS-C-S-08 | 1310 | PBS-C-S-09 | 1550 |

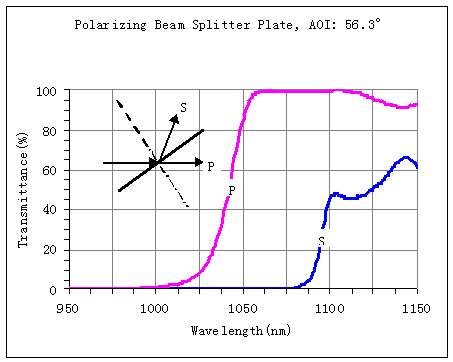

备注: 可定制. 棱镜>>>偏振分光镜
|
详细说明
| 基底 | UV grade fused silica, BK7 | 表面面型 | <λ/10 @ 633nm | 表面质量 | 10/5 laser quality | 倒角 | 0.25mm at 45° typical | 镀膜工艺 | Electron beam evaporation, dielectric multilayers | 通光口径 | > 85% of diameter | 入射角 | 56.3°±3° | 波长范围 | Visible, Near Infrared | 偏振透光率 | Tp>97%; Ts<0.5% | 消光系数 | Tp/Ts>100:1 | 损伤阈值 | >5J/cm2 (1.06μm, 1ns) | 型号 | 直径(mm) | 波长(nm) | PBS-P-01-A/B/C | 20/25.4/30 | 780 | PBS-P-02-A/B/C | 20/25.4/30 | 1064 | PBS-P-03-A/B/C | 20/25.4/30 | 1310 | PBS-P-04-A/B/C | 20/25.4/30 | 1550 |
|
|
|
